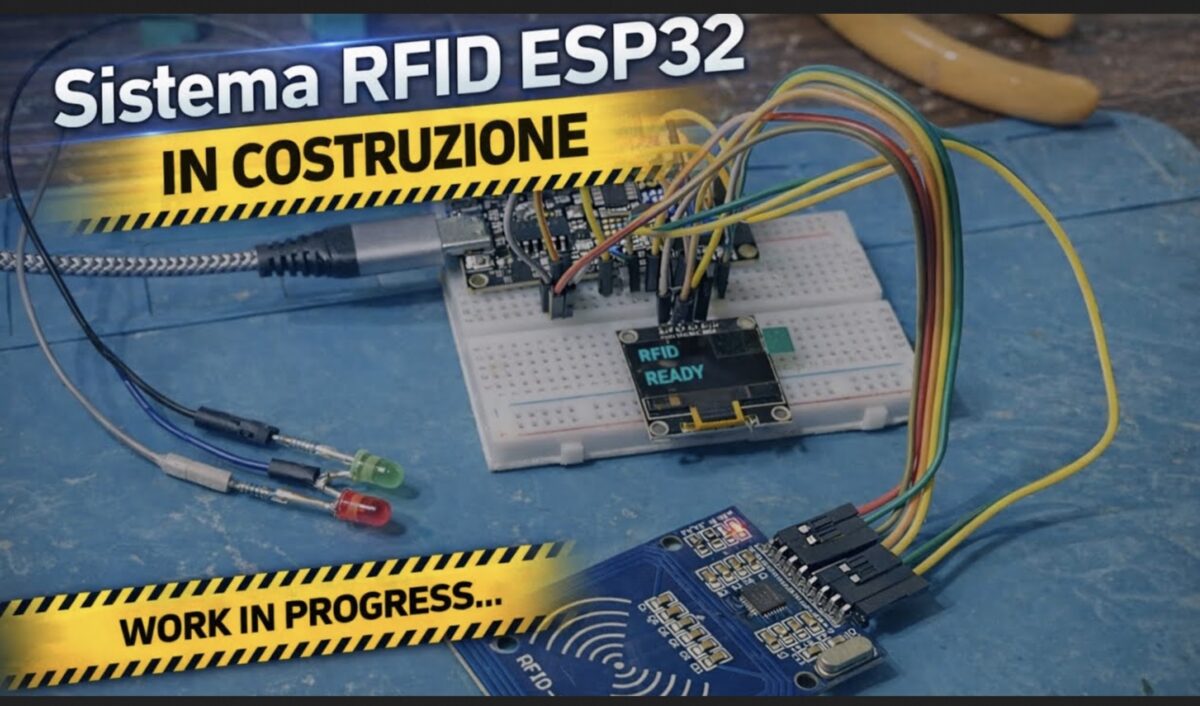

Una guida completa per realizzare un accesso elettronico affidabile, elegante e totalmente integrato con ESPHome.
—
🔧 Componenti necessari
- ESP32 DevKit
- Lettore RFID RC522 (SPI)
- Display OLED SSD1306 128×64 (I2C)
- Modulo relè 5V
- LED verde + LED rosso (con resistenze 220–330 Ω)
- Buzzer attivo a 3 pin
- Alimentazione 5V
- Cavi dupont
—
🧩 Collegamenti elettrici
Tabella completa dei collegamenti ESP32 → Componenti
RC522 (SPI)
| Funzione RC522 | Pin RC522 | Pin ESP32 |
| Alimentazione | VCC | 3.3V |
| Massa | GND | GND |
| Reset | RST | GPIO22 |
| SS / SDA | SDA | GPIO5 |
| SCK | SCK | GPIO18 |
| MOSI | MOSI | GPIO23 |
| MISO | MISO | GPIO19 |
Display OLED SSD1306 (I2C)
| Funzione OLED | Pin OLED | Pin ESP32 |
| Alimentazione | VCC | 3.3V |
| Massa | GND | GND |
| SDA | SDA | GPIO21 |
| SCL | SCL | GPIO17 |
LED di stato
| LED | Anodo → ESP32 | Catodo → |
| Verde | GPIO14 (via resistenza) | GND |
| Rosso | GPIO27 (via resistenza) | GND |
Relè cancello
| Funzione | Pin modulo relè | Pin ESP32 |
| Segnale | IN | GPIO32 |
| Alimentazione | VCC | 5V |
| Massa | GND | GND |
Buzzer attivo 3 pin
| Funzione | Pin buzzer | Pin ESP32 |
| Alimentazione | VCC | 5V |
| Massa | GND | GND |
| Segnale | I/O | GPIO26 |
💡 Funzionamento del sistema
- Quando un tag RFID viene avvicinato, l’ESP32 legge l’UID tramite il modulo RC522.
- Se il tag è autorizzato:
- Il relè invia un impulso per aprire il cancello
- Il LED verde si accende per 8 secondi
- Il display mostra “ACCESSO CONSENTITO”
- Il buzzer emette due beep
- Se il tag non è autorizzato:
- Il LED rosso si accende per 8 secondi
- Il display mostra “ACCESSO NEGATO”
- Il buzzer emette tre beep rapidi
—
🧠 Codice ESPHome completo e funzionante
esphome:
name: esphome-web-568b34
friendly_name: Esp32 RFID
min_version: 2025.11.0
name_add_mac_suffix: false
on_boot:
priority: -100
then:
- switch.turn_on: rele
esp32:
variant: esp32
framework:
type: esp-idf
logger:
level: DEBUG
api:
ota:
platform: esphome
wifi:
ssid: "xxx"
password: "sxxxxx"
spi:
clk_pin: 18
mosi_pin: 23
miso_pin: 19
rc522_spi:
cs_pin: 5
reset_pin: 22
update_interval: 1s
on_tag:
then:
- lambda: |-
std::string uid = x;
uint32_t now = millis();
if (now - id(ultimo_lettura) < 2000) {
return;
}
id(ultimo_lettura) = now;
ESP_LOGI("rfid", "Tag rilevato: %s", uid.c_str());
id(ultimo_tag).publish_state(uid);
for (auto &t : id(tag_autorizzati)) {
if (t == uid) {
ESP_LOGI("rfid", "Accesso consentito");
id(accesso_consentito).publish_state(true);
id(accesso_negato).publish_state(false);
id(led_ok).execute();
id(display_ok).execute();
return;
}
}
ESP_LOGW("rfid", "Accesso negato");
id(accesso_consentito).publish_state(false);
id(accesso_negato).publish_state(true);
id(led_ko).execute();
id(display_ko).execute();
globals:
- id: tag_autorizzati
type: std::vector<std::string>
initial_value: '{"67-89-90-C9", "67-FA-0A-c9"}'
- id: ultimo_lettura
type: uint32_t
initial_value: '0'
output:
- platform: gpio
pin: 14
id: led_verde_pin
- platform: gpio
pin: 27
id: led_rosso_pin
script:
- id: led_ok
then:
- switch.turn_on: buzzer
- delay: 120ms
- switch.turn_off: buzzer
- delay: 120ms
- switch.turn_on: buzzer
- delay: 120ms
- switch.turn_off: buzzer
- switch.turn_off: rele
- delay: 1s
- switch.turn_on: rele
- light.turn_on: led_verde
- delay: 8s
- light.turn_off: led_verde
- lambda: |-
id(accesso_consentito).publish_state(false);
- id: led_ko
then:
- switch.turn_on: buzzer
- delay: 80ms
- switch.turn_off: buzzer
- delay: 80ms
- switch.turn_on: buzzer
- delay: 80ms
- switch.turn_off: buzzer
- delay: 80ms
- switch.turn_on: buzzer
- delay: 80ms
- switch.turn_off: buzzer
- light.turn_on: led_rosso
- delay: 8s
- light.turn_off: led_rosso
- lambda: |-
id(accesso_negato).publish_state(false);
- id: display_ok
then:
- display.page.show: page_ok
- delay: 8s
- display.page.show: page_idle
- id: display_ko
then:
- display.page.show: page_ko
- delay: 8s
- display.page.show: page_idle
light:
- platform: binary
id: led_verde
name: "LED Verde RFID"
output: led_verde_pin
- platform: binary
id: led_rosso
name: "LED Rosso RFID"
output: led_rosso_pin
switch:
- platform: gpio
id: rele
name: "Relè Cancello"
pin:
number: 32
inverted: true
restore_mode: ALWAYS_ON
- platform: gpio
id: buzzer
name: "Buzzer RFID"
pin:
number: 26
restore_mode: ALWAYS_OFF
text_sensor:
- platform: template
id: ultimo_tag
name: "Ultimo TAG RFID"
- platform: wifi_info
ip_address:
name: "ESP32 IP Address"
ssid:
name: "ESP32 WiFi SSID"
- platform: version
name: "Firmware ESPHome"
button:
- platform: restart
id: riavvia_esp
name: "Riavvia Proxy ESP32"
binary_sensor:
- platform: template
id: accesso_consentito
name: "Accesso RFID Consentito"
- platform: template
id: accesso_negato
name: "Accesso RFID Negato"
i2c:
sda: 21
scl: 17
scan: true
font:
- file: "gfonts://Roboto"
id: font1
size: 20
display:
- platform: ssd1306_i2c
model: "SSD1306 128x64"
address: 0x3C
id: oled
pages:
- id: page_idle
lambda: |-
it.printf(0, 0, id(font1), "RFID");
it.printf(0, 28, id(font1), "READY");
- id: page_ok
lambda: |-
it.printf(0, 0, id(font1), "ACCESSO");
it.printf(0, 28, id(font1), "CONSENTITO");
- id: page_ko
lambda: |-
it.printf(0, 0, id(font1), "ACCESSO");
it.printf(0, 28, id(font1), "NEGATO");
sensor:
- platform: uptime
name: Uptime Sensor
filters:
- lambda: return x / 3600;
unit_of_measurement: "h"
accuracy_decimals: 2
